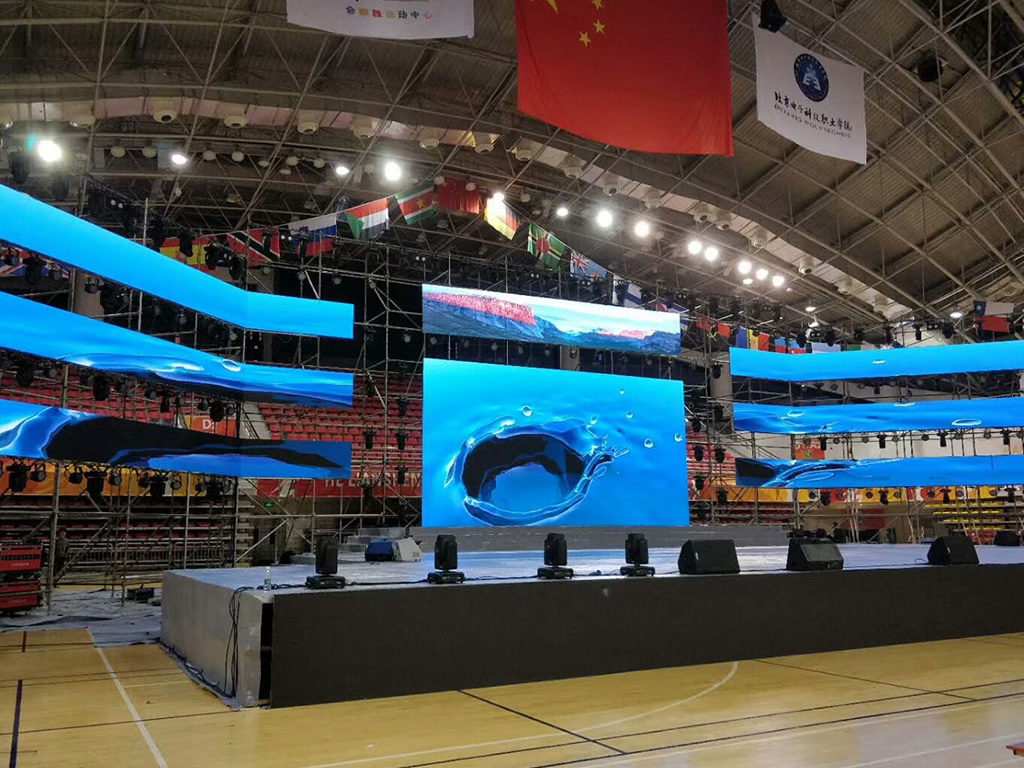

High definition images, dynamic animation effects, support multiple broadcast format, widely application for retail shops, chain stores, TV studios, Cinemas, Airports, Museums. Assemble what you want it for!
| Pixel Pitch | 1.5mm | 1.9mm | 2.5mm | 3.1mm | 3.9mm |
| LED Type | SMD1010 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Density | 409,600 | 262,144 | 160,000 | 102,400 | 65,536 |
| Driving Type | 1/32 | 1/32 | 1/25 | 1/27 | 1/16 |
| Brightness (nits) | >600 | >1000 | >900 | >900 | >900 |
| Viewing Angle (°)(H/V) | 160/120 | ||||
| Module Size(WxH)/ (mm) | 250X250 | ||||

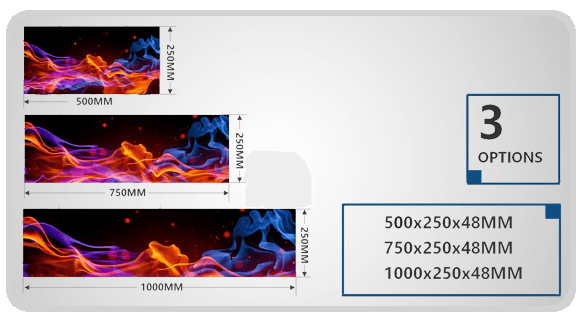

| Cabinet Size (WxH)/ (mm) | 500X1000 (standard size) | ||||
| Color Grayscale (Bit) | 14-16bit | ||||
| Refresh Rate (Hz) | 3840 | ||||
| IP Rating (Front/Rear) | IP40/IP20 | ||||
| AC Input Voltage (V) | AC:90-240V±10% | ||||

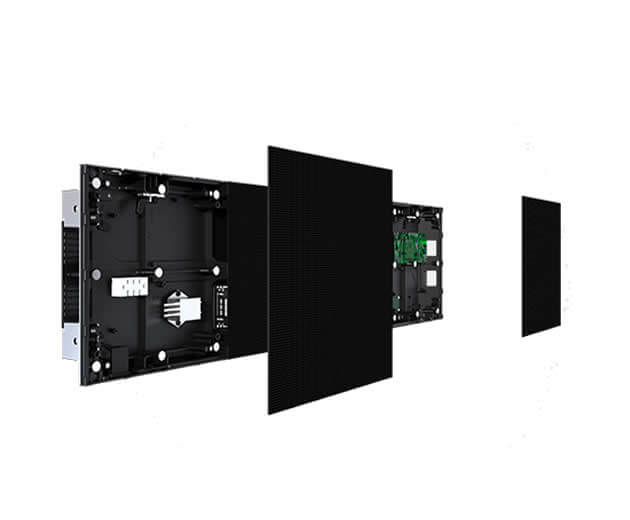

| Module Installation Method | Front Access | ||||
| Panel Material | Aluminum | ||||
| Storage Temperature (℃) | ‐40～60 | ||||
| Working Temperature (℃) | ‐20～50 | ||||
| Storage Humidity (RH) | 10%~90% non‐condensing | ||||
| Working Humidity (RH) | 10%~80% non‐condensing | ||||
| Lifetime Typical Value (hrs) | 100000 | ||||
| Cabinet Installation Type | Fixed installation | ||||
