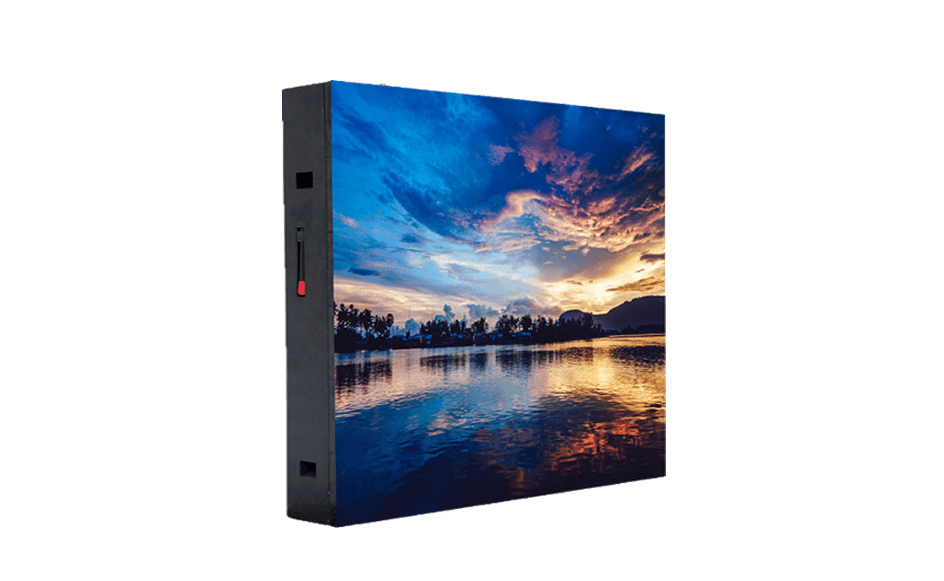

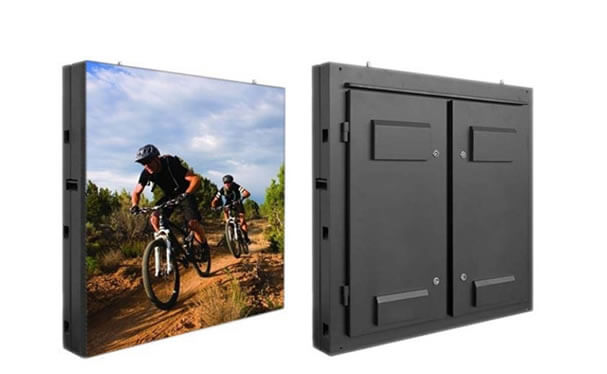

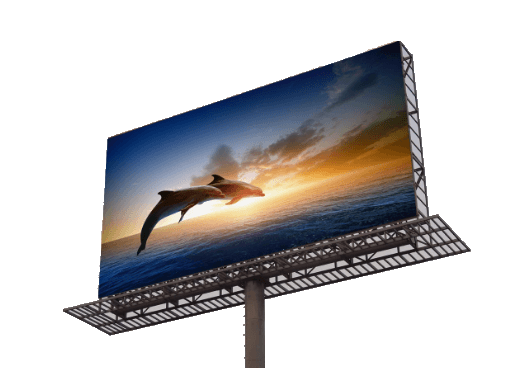

Outdoor led displays are large billboards made to display advertising, any kind of video, and more. They can be placed in any open-air area thanks to their modular assembling system. LED screens are cost-effective, reliable an offer a high return of your investment.
| Pixel Pitch | 3.33mm | 4 mm | 5 mm | 6.67mm | 8 mm | 10 mm |
| LED Type | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Density | 90,000 | 62,500 | 35,200 | 22,477 | 15,625 | 10,000 |
| Driving Type | 1/12 | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Brightness (nits) | >5000 | >5500 | >5500 | >5500 | >5500 | >6000 |
| Viewing Angle (°)(H/V) | 140/120 | |||||
| Module Size(WxH)/ (mm) | 320X160 | |||||
| Cabinet Size (WxH)/ (mm) | 960X960 | |||||

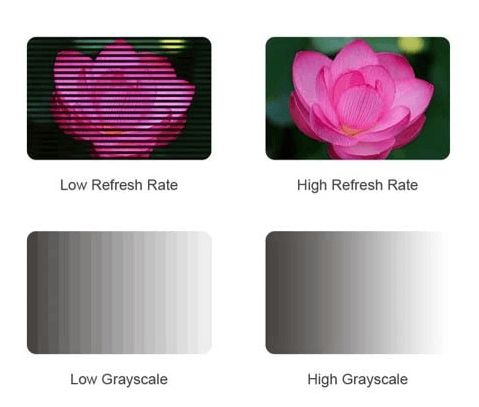

| Color Grayscale (Bit) | 14-16bit | |||||
| Refresh Rate (Hz) | 960~3840 | |||||

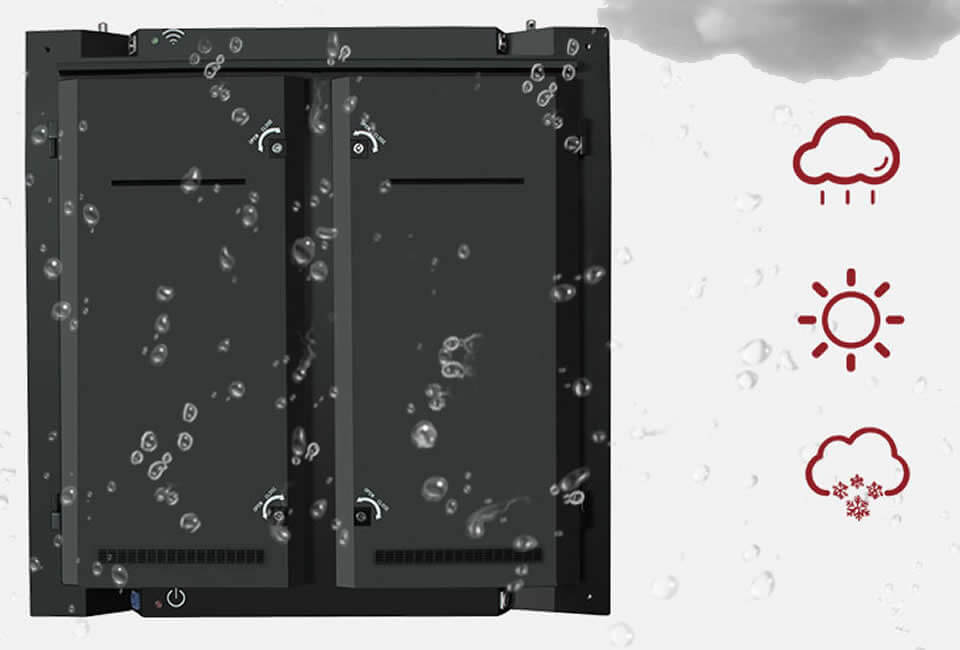

| IP Rating (Front/Rear) | IP65/IP54 | |||||
| Contrast Ratio | >3500:1 | |||||
| AC Input Voltage (V) | AC:90-240V±10% | |||||
| Module Installation Method | Back Access | |||||
| Panel Material | Aluminum/Iron | |||||
| Storage Temperature (℃) | ‐40～60 | |||||
| Working Temperature (℃) | ‐20～50 | |||||
| Storage Humidity (RH) | 10%~90% non‐condensing | |||||
| Working Humidity (RH) | 10%~80% non‐condensing | |||||
| Lifetime Typical Value (hrs) | 100000 | |||||
| Cabinet Installation Type | Fixed installation | |||||
